Product Details:
Payment & Shipping Terms:
|
| Product Name: | Concrete EPS Sandwich Panel Production Line | Color: | Customized |
|---|---|---|---|
| Annual Production Capacity: | 100,000 SQM - 1,000,000 SQM / Year | Machine Warranty: | 1 Year |
| Daily Production Time: | 8h-12h | Type: | Automatic |
Lightweight Concrete EPS Sandwich Panel Production Line , Panel Making Machine
Description:
1. This production line has high output & returns, low input, high reach in production output of 1,000,000 sqm a year .
2. Our wall panel production line can produce Solid panel(SPB), Reinforced Panel (JPB) and Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels. It is suitable for both small and large manufacturing on production.
Advantages:
1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additives the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price.
9. Long-term professional services
Components:
1 . Foaming System
1) Boiler system
The equipment is mainly used for supplying steam for the foaming equipment to foam EPS foam. We used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water. The boiler's thermal efficiency is higher than 98%. Electricity is used for the boiler to heat, clean and pollution-free at site.
2) Continuous pre-expander machine (EPS foaming machine)
The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
It is complete with Screw Convey and Electronic Weighing system. It can realize the primary and second expansion.
Technical Parameters:
| Item | Unit | PSF-Q1400JR |
| Diameter | mm | 1400 |
| Shell height | mm | 2000 |
| Volume | m³ | 3 |
| Usable volume | m³ | 2.8 |
| Steam pressure | Mpa | 0.6-0.8 |
| Compressed air pressure | Mpa | 0.6-0.8 |
| Density | kg/m³ | 12-40 |
| Throughput | kg/h | 150-600 |
| Connected load | kw | 14.87 |
| Overall dimension | mm | 1400x2150x2950 |
| Machine weight | kg | 2500 |
2 . Raw Materials Storage / Measuring / Conveying System
Used for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
4 . Forming and Gating System
1) Railway of production line
2) Automatic mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
Accessories |
Pressing Mould Plate, side mould |
|||||
|
Production Data |
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
|
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.

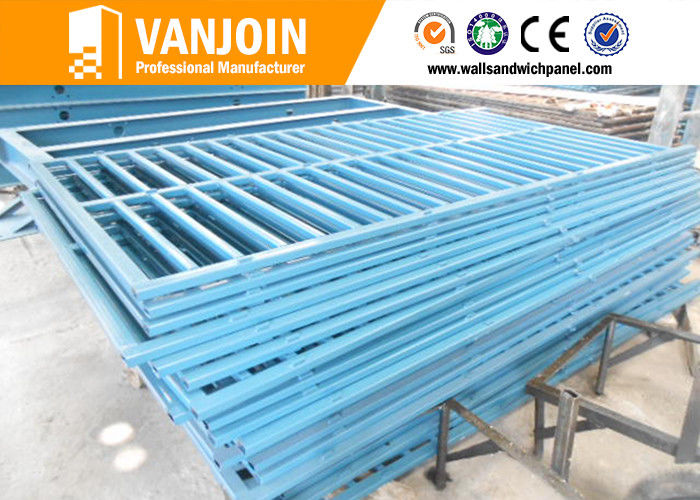

Construction Material Making Machinery Photo:
