Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sandwich Panel Production Line | Color: | Customized |
|---|---|---|---|
| Annual Production Capacity: | 100,000 SQM - 1,000,000 SQM / Year | Machine Warranty: | 1 Year |
| Daily Production Time: | 8h-12h | Production Area Needed: | 500-1400㎡ |
High Efficiency EPS Sandwich Panel Production Line , Equipment And Machines
Description:
1. This production line has high output & returns, low input, high reach in production output of 1,000,000 sqm a year .
2. Our wall panel production line can produce Solid panel(SPB), Reinforced Panel (JPB) and Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels. It is suitable for both small and large manufacturing on production.
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Used for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
| Theoretical Productivity | 2×35m³/h |
| Mixing Time | ≤180s |
| Materials Measuring Accuracy | ±1% |
| Sand Batching Period | ≤10s |
| Sand delivering Speed | 18m³/h |
| Water Supply Flow Speed | 30m³/h |
| Cement Delivering Capacity | 20t/h |
4 . Forming and Gating System
1) Railway of production line

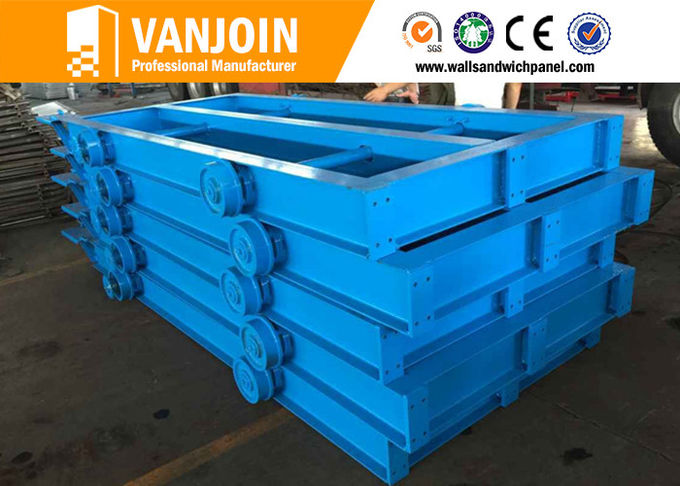

2) Automatic mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data |
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.
Advantages:
1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
9. Long-term professional services
What you can get from us?
※ Over 20 years service life
※ Maintenance time: 2year
※ Fully automatic production system
※ Unique raw materials measuring ,delivery and mixing system
※ Long-term professional services
※ High output with less workers
※ Free training
Construction Material Making Machinery Photo:
