Product Details:
Payment & Shipping Terms:
|
Features: | Waterproof, Fireproof, Sound Insulation, Heat Insulation Panel | Product Name: | Sandwich Wall Panels |
---|---|---|---|
Core Material: | Cement, EPS, Sand And Additives. | Sound-insulation: | 46db |
Surface Panel: | Calicium Silicon Board | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
Fireproof: | Under 1000 Degree For 4 Hours Without Damage To The Wall | Anti-earthquake: | Class 8 |
Service Life: | 60-70 Years | Thermal Conductivity: | 0.221W/mK |
Weight: | 55~58 Kg/㎡ | Certificate: | CE,ISO9001,ISO14000,BV Certifficate,, |
Fast Construction Exterior Wall Sandwich Wall Panels Eps Cement 150MM

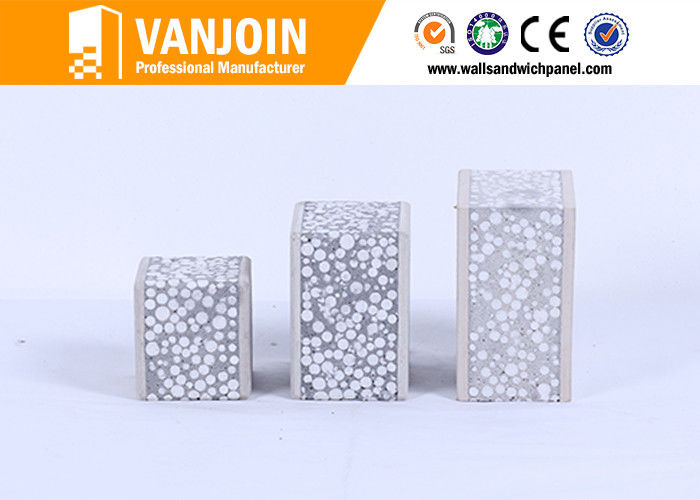

> 1. Composition of Sandwich Wall Panels:
Core materials: cement, EPS, sand and additives.
Surface materials: fiber reinforced calcium silicate board or cement calcium silicate Board.
> 2. Specification of Sandwich Wall Panels:
• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volumn order)
Remark: All kinds of panels can be customized by customers' specific requirement,
such as density and length of panel.
> 3. Features and Advantages of Sandwich Wall Panels:
Interior/Exterior |
Fast construction |
75-80m2/day three workman |
Sound insulation |
46dB |
|
Space saving |
Save 4.26m2 per 100 m2 area |
|
Anti-seismic |
Class 7-8 |
|
Fireproof |
4 hours, under 1000 degree centigrade |
|
Eco-friendly |
100% non-asbestos |
|
Hanging force |
Single point hanging force 50kg, Embed hanging force 150kg |
|
Service Life |
60-70years |

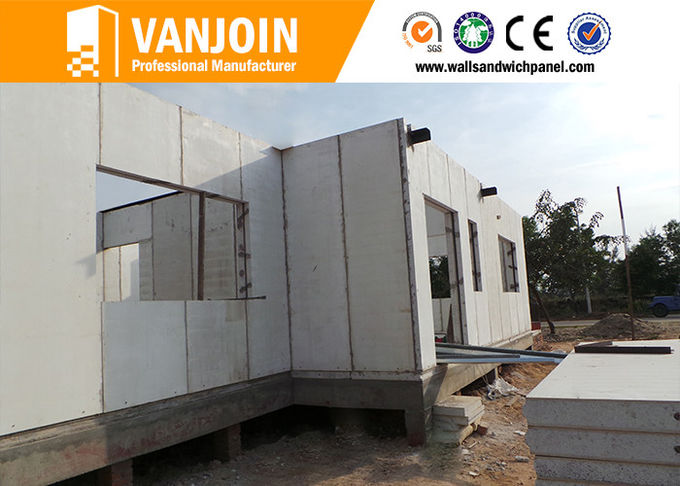

> 4. Installation of Sandwich Wall Panels:
1. Setting the line and carrying |
Eject double lines of board thickness up and down the axes |
2. Sawing board |
Using hand-hold electric saw to cut freely according to the |
3. Sizing |
Sizing cement on tenon side of two boards, then spread |
4. Installation |
Carrying the board prepared to be installed to the |
5. Correcting, fixing |
Using the guiding rule of two meters to check the |
6. Grouting and filling starch |
Filling the strickling the corrected wall board with |
7. Sticking fiberglass mesh (we can supply ) |
After the polymer (for filling the gaps) and Wall are |
8. Installing electrical wires and switches |
Setting lines on the places needing to be set with |
9. Installing doorcase |
Preparing door and window holes on the installed wall, |
10. Facing coating and wall papers |
Scraping putty directly without plastering on the installed |
11. Facing ceramic tile,decorative sheet |
Sticking ceramic tiles or other wood facing panels |
12. Electric apparatus installation |
Install lights, furniture, air-conditioners casually on |
1 : How many years your company have been in this field?
Ans: More than 10 years of manufacturing Lightweight Sound Insualtion Precast Concrete Panels, now we are the TOP 3 in middle of China, and among TOP 3 in China in this field.
2 : Main market of Vanjoin ?
Ans: Main market : Asia, South Amercia, Africa
South East Asia is our largest market ,Mid East is our second largest market
3 : Exporting details :
Ans: loading & shipping 400 20ft every month
4 : More information of Vanjoin factory ?
Ans: Land area: 30,000m2 Machines: Fully automatic production line
Productivity: 2,000,000m2 wall panel every year.
5 : How could I get the samples ?
Ans: We send you the free Lightweight Sound Insualtion Precast Concrete Panels samples, brochures & installation cd etc, you pay for the freight charges. If you get the TNT, DHL, UPS Fedex account, that is the best. If not, you can transfer money to our West Union account , then we send you Lightweight Sound Insualtion Precast Concrete Panels samples by Vanjoin account.
