Product Details:
Payment & Shipping Terms:
|
| Type: | Full Automation | Application: | Produce Sandwich Panel |
|---|---|---|---|
| Production Capacity: | 10,000m2-1,000,000m2 / Year | Status: | New |
| Lifespan: | Over 20 Years | Warranty: | 1 Year |
| Mould Car: | Vertical | EPS Foaming Machine: | Full Automatic |
| Mixer: | JS750, JS1000 | Raw Materials: | EPS, Cement,Sand,Additives |
Full Automatic Sandwich Panel Production Line EPS Cement Panel Making Machines
Production Capacity
It is various from 100,000m2, 200,000m2, 300,000m2 ... to 1,000,000m2 per year.
Types of Sandwich Panels
EPS cement sandwich panel
Ceramisite sandwich panel
Perlite sandwich panel
Ceramisite & eps sandwich panel
Production Data
| Specification(L*W*T) | Output of One Mould Car |
| 2270mm*610mm*60mm | 60 pcs/set |
| 2270mm*610mm*75mm | 50 pcs/set |
| 2270mm*610mm*90mm | 42 pcs/set |
| 2270mm*610mm*100mm | 40 pcs/set |
| 2270mm*610mm*120mm | 34 pcs/set |
| 2270mm*610mm*150mm | 28 pcs/set |
| 2270mm*610mm*180mm | 22 pcs/set |
Workers and Area Requirement
| Annual Production Capacity | Workers Requirement | Production Area Requirement |
| 100,000 m2 | 8-13 | 500m2 |
| 200,000 m2 | 10-18 | 600m2 |
| 300,000 m2 | 12-20 | 700m2 |
| 400,000 m2 | 15-23 | 800m2 |
| 500,000 m2 | 18-28 | 900m2 |
| 600,000 m2 | 22-32 | 1000m2 |
| 700,000 m2 | 25-35 | 1100m2 |
| 800,000 m2 | 28-38 | 1200m2 |
| 900,000 m2 | 32-42 | 1300m2 |
| 10,00,000 m2 | 35-46 | 1400m2 |
Material Requirements
| Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
| EPS | Expandable polystyrene granule |
| Sand | SiO2≥98% |
| Cement | Ordinary portland cement with grade of 42.5 |
| Additives | Vanjoin customized additives |
| Water | Normal water |
| Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
Main Machines
| Boiler | electric boiler, coal boiler, gas boiler |

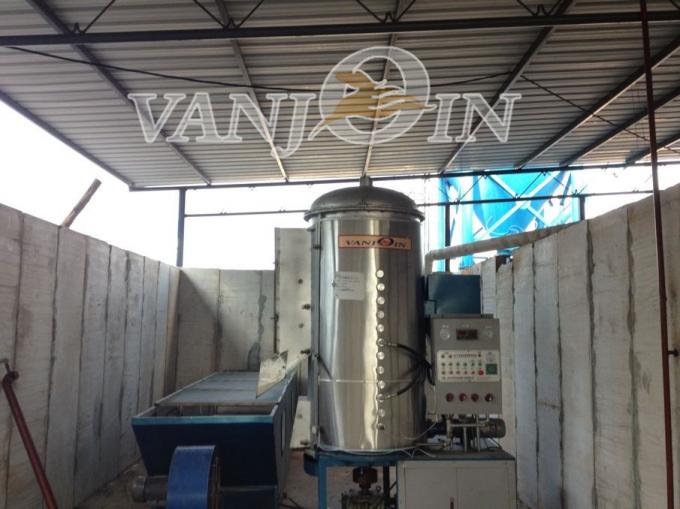

| EPS Foaing Machine | continuous pre-expander |
| Silo | cement Silo,sand silo |
| Mixer | JS750, JS1000 |
| Mould Car | Vertical |
Mould Machine's Technical Index
| Item | Main Parameters | ||||||
| Overall Dimensions |
3180mm×1380mm×3480mm |
||||||
|
Weight
|
2800KG |
||||||
|
Movement Power(KW) |
2.2 |
||||||
|
Movement Speed(m/min)
|
≤60 |
||||||
|
Main Components
|
Main Part
|
Base(contain power device), front support, back support, pressing plate, rod
|
|||||
|
Accessories
|
Pressing Mould Plate, side mould
|
||||||
|
Production Data
|
Thickness
(mm) |
Width
(mm) |
Length
(mm) |
Production Quantity
(pieces/set) |
Area
(㎡/set) |
Raw Materials
(m³) |
|
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
||
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
||
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
||
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
||
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
||
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
||
|
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
||
About Us
10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
