Energy saving Construction Material Making Machinery Stainless Steel 380V

Energy-saving Construction Material Making Machinery Panel Production Line

1. Description:

Vanjoin panel production line is used to produce construction material, eps cement sandwich wall panel, ceramsite cement sandwich wall panel, eps ceramsite wall panel, perlite cement sandwich wall panel, etc.

Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.

2. Vanjoin Automatic Sandwich Wall Panel Machine Competitive Advantage:

• ※ Produce patented sandwich wall panels with excellent performance;
• ※ Unique raw material measuring, delivery and mixing system;
• ※ High-tech support from the talents of specialized research group in famous university;
• ※ Strict quality control;
• ※ Experienced and well trained workers and installation team;
• ※ Professional designer, engineer, technology

3. Technical Parameter and Production Data:

4. Composition:

• ※ Boiler System;
• ※ Raw Materials Storage/Measuring/Conveying System;
• ※ Mixing System;
• ※ Forming and Gating System

4.1 Boiler System

Boiler is mainly used for supplying steam for the foaming equipment to foam EPS foam, we used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water, the boiler’s thermal efficiency is higher than 98%, electricity is used for the boiler to heat, clean and pollution-free at site.

Remark: Oil and gas boilers are also available at customers' request.

4.2 EPS Foaming Machine

High precise guiding pressure reducing value controls the temperature and steam pressure of the closed barrel, ensuring the outcome pressure of the valve constant and the inner temperature ontrolled with 1%, which keeps the foamed material equal and prevents the bead agglomerate because of the bad temperature control.

This machine can realize the primary and second expansion.

4.3 Raw Materials Storage/Measuring/Conveying System:

• ※ Automatic Cement Supply System;
• ※ Automatic Sand Supply System;
• ※ Automatic Water Supply System;
• ※ Automatic Foam Supply System;
• ※ Automatic Additive Supply System.

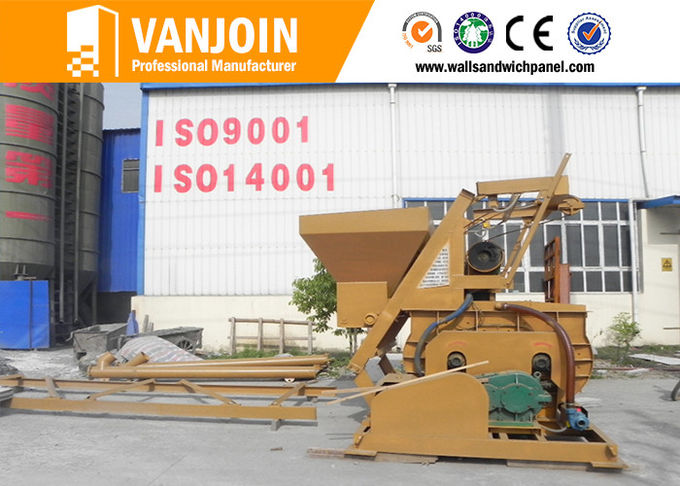

4.4 Mixing System

Through full automatic control system, it can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials and additives, etc.

Body Frame: Two-storey design by adopting section bars wedded together.

4.5 Forming and Gating System

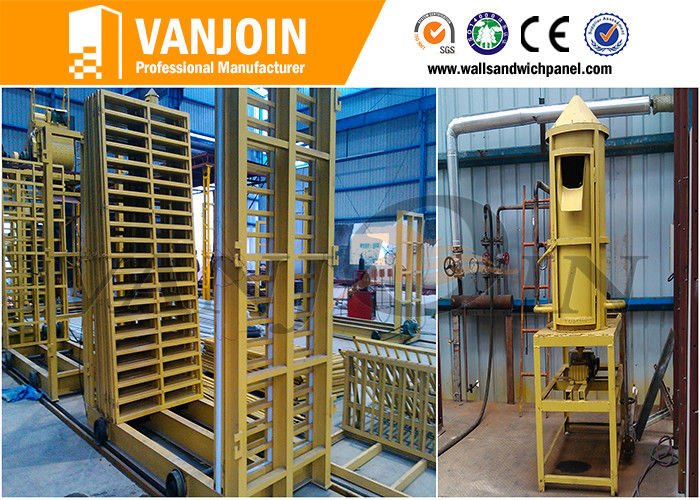

Vertical Automatic Mould Machinery

This mould has high output and returns, low input, high reach in production output of 100,000 to 2,000,000 square meters annual capacity.

5. What You Can Get from Vanjoin Group?

• ※ Investment cost calculation;
• ※ Production capacity calculation;
• ※ Free factory area design;
• ※ Free Production line layout design;
• ※ Engineers for installation and guidance on-site;
• ※ Free labor training;
• ※ 12 months warranty;
• ※ Life long professional service;
