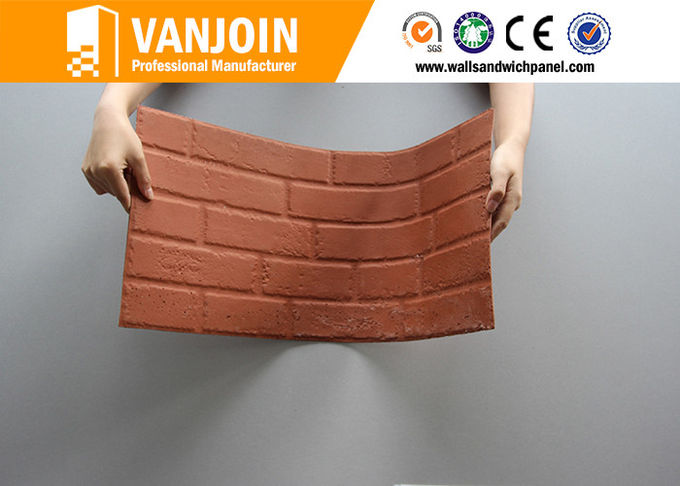

Waterproof UV Insulation Flexible Ceramic Tile Soft Facing Roof Tile

Large Image : Waterproof UV Insulation Flexible Ceramic Tile Soft Facing Roof Tile

Product Details:

Place of Origin:	Hubei, China
Brand Name:	VANJOIN
Certification:	CE/BV/ISO9001/ISO14001/
Model Number:	ST-8-1R

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time:	15 working days after received your payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000 square meters per month

Detailed Product Description

Product Name:	Waterproof UV Insulation Flexible Ceramic Tile Soft Facing Roof Tile	Material:	MCM, Modified Clay Material
Size:	240mm * 60mm; 600mm * 120mm; 300mm 600mm; 600mm 600mm; 600mm * 1200mm;	Color:	Blacks, Blues, Browns / Tans, Grays, Greens, Oranges, Purples / Lavenders, Reds / Pinks, Whites, Yellows / Golds More Colors Can Be Customized.
Tile Type:	Full Body Tiles, Wall Tiles, MCM Tiles, Facing Roof Tile	Anti-UV:	IR Insulation, UV Insulation
Feature:	Light Weight, Soft, Flexible, Anti-crack, Waterproof, Anti-pollution, Self-cleaning, Fireproof, Breathable, Rebound Resilience, Eco-friendly, Etc.	Application:	Roof Decoration, Interior Wall Decoration, Exterior Wall Decoration, High-rise Buildings, Irregular Structures, School, Office, Hospital, Hotel, Etc.

Waterproof UV Insulation Flexible Ceramic Tile Soft Facing Roof Tile

1. Description:
Original flexible facing roof tile, make the building more beautiful and pay more attention on the protection of roof system, make sure your home is more safe.

2. Composition:

Natural Raw Materials:

※ Colored mineral sand,
※ Mountain flour,
※ Modified clay material (Green Materials, asbestos free),
※ Vanjoin additive (invention patent),
※ Soft emulsion agent, waterproof agent,
※ Flame retardant agent,antioxidant.

3. Technical Parameter, Feature and Performance:

Technical Parameter	Material	MCM, Modified Clay Material
	Tile Size	240mm * 60mm; 600mm * 120mm; 300mm 600mm; 600mm 600mm; 600mm * 1200mm;
	Thickness	1.5mm, 2.0mm, 2.5mm, 3.0mm,3.5mm, 4.0mm
	Dimensional Stability	±0.5%
	Colors	Blacks, Blues, Browns / Tans, Grays, Greens, Oranges, Purples / Lavenders, Reds / Pinks, Whites, Yellows / Golden
	Tile Type	Full Body Tiles, Wall Tiles, MCM Tiles, Facing Roof Tile
	Anti-UV	IR Insulation, UV Insulation
	Capacity	5kg/m2
	Water Absorbing Capacity	<0.1 With European Indicators
	Usage	Roof Decoration, Interior Wall Decoration, Exterior Wall Decoration, High-rise Buildings, Irregular Structures, School, Office, Hospital, Hotel, etc.
Feature and Performance	Light Weight	1/6 of other tiles
	Flexible	Soft and crack-free
	Tensile Strength	≧1.0Mpa
	Energy Saving	Low Carbon, Recyclable
	Fast Construction	Easy Install, Even can be pasted onto the original wall or tiles directly.
	Safe & healthy	Non-toxic, Non VOC, Eco-friendly, Environmental friendly
	Weather Resistance	Anti Aging, Alkali Resistance, Acid Resistance
	UV Resistance	Excellent Ultra violet ray resistance
	Fireproof	A-grade, No Naked Flame, No Dense Smoke
	Waterproof	Dump proof, Stain Resistance & Self-cleaning
	Plasticity	Any Pattern, Any Texture, Any Color
	Solid & Firm	Anti-impact, Non Friable
	Freezing, thawing resistance	-30~10 Degree 100 Times, No Cracking, No Striping
	Breathable	Microporous Structure, Water-repellent and Air Permeability
	Frost-Resistance	After 100 Cycles, No Surface Crack, Flake by naked eye observation
	Color Fastness	Mineral sand natural-born color, No color fading.
	Impact Resistance	Soft and Rebound Resilience
	Service Life	50+ Years

4. Competitive Advantages:

Vanjoin flexible facing roof tile is our new invention patent, it's soft and flexible, light weight, waterproof and self-cleaning, especially suitable for irregular structures and high-rise buildings.

5. Comparison with Other Materials:

	Vanjoin Facing Roof Tile	Ceramic Tile	Marble slab	Aluminum Plastic Panel	Glass Curtain Wall	Paint
Weight/ kg/m2	1.5-8	20-60	30-60	9-20	20-50	1.5-5
Flexibility	√	×	×	×	×	Normal
Representability	Colorful, All kinds of
Surface texture	Colorful, All kinds of texture	Normal	×	×	Colorful, little kind of texture
Safety	√	×	×	Normal	×	√
Water-repellent	√	√	√	√	√	√
Installation Cost	Cheap	Normal	Expensive	Expensive	Expensive	Cheap
Air permeability	√	×	×	×	×	Normal
Service life	≥50years	≥30years	≥30years	≥10years	≥25years	≥10years

6. Installation and Construction:

※ After basic level processing, setting line, snap the line for positioning.
※ Using sawtooth trowel to crape sealant, sealant thickness 2-3mm, full sealant rate above 80%. 1-5cm for distance from two sides, convenient for hands to take, thus to avoid pollution of hands.
※ Hands moving pressure & online, till the sealant evenly passed the edge. Use plastic to press on it, press with finger is strictly prohibited.
※ Use the matching sealant for filling the seam, all the seam should be filled. Also can fill sealant in a plastic bag, make a whole & squeeze out for filling the seam.
※ Use the matching joint steel bar for filling the seam, seam should be deep concave, saturated, smooth.
※ When the sealant pollute your hands, using hands to grasp is strictly prohibited If any sealant pollute the product surface, upon semi-dry, use the shovel to eradicate, wet bubbling is strictly prohibited.
※ With a dry sponge to remove the ash.
※ Completed results after finish construction.

Waterproof UV Insulation Flexible Ceramic Tile Soft Facing Roof Tile

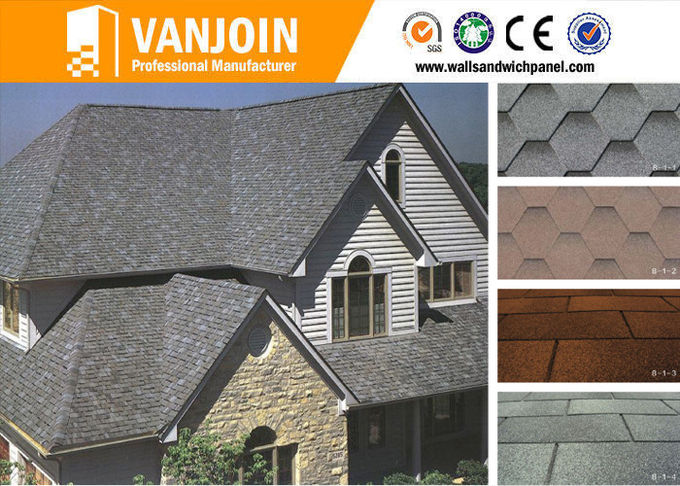

7. Applications:

Vanjoin flexible facing roof tile mainly be used as roof system, interior wall decoration, exterior wall decoration, especially for villas, prefab houses, high-rise buildings and irregular structures, etc.

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
