Product Details:
Payment & Shipping Terms:
|
| Type: | EPS Sandwich Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Color: | Grey | Size: | 2270mm* 610mm * 60/75/90/100/120/150mm |
| Anti-earthquake: | 8-13 Grade | Use Life: | 70Years |

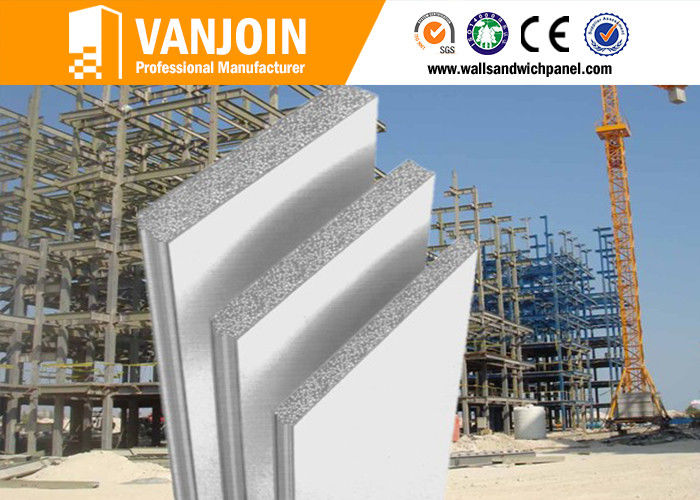

Exterior Composite Sandwich Wall Panels / EPS Concrete Board

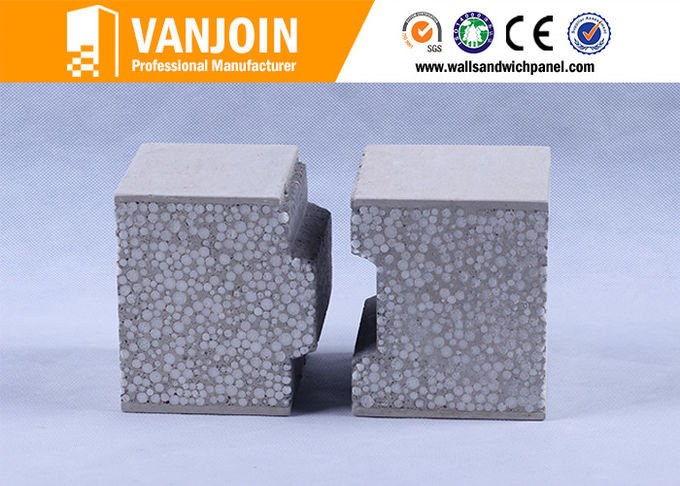

1. Composition:
Core materials: cement, EPS, and fly ash core.
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board.
2. Size&Weight:
|
NAME |
SPECIFICATION(MM) |
WEIGHT(kg/m2) |
Allowed Tolerance(mm) |
|
VJ light weight compound sandwich panel |
2270*610*60 |
45-48 |
Length±5 Width±2 Thickness±1 Diagonal±2 |
|
2270*610*75 |
50-53 |
||
|
2270*610*90 |
55-58 |
||
|
2270*610*100 |
60-65 |
||
|
2270*610*120 |
65-75 |
||
|
2270*610*150 |
80-90 |
||
|
2270*610*180 |
95-105 |
3. Usage:Interior and exterior partition on steel or concrete structure building, For new construction, additions or renovations.
4. Advantages:
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100%non-asbestos |
|
Easy to install, fast construction |
3 workers can finish a 70 m2 house just by 1 week |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
38-50 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
The panel can keep well about 4 hours under 1000 degree |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Weight capacity |
500KG/ square meter |
5. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board
Can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops
6. For Partition Wall:
7. Exterior Wall Application:
8. Interior Wall Application:
9. Installation:
1. Setting the line and carrying the board in position;
2. Sawing board basing on requirement;
3. Sizing cement on tenon side of two boards;
4. Carrying the board prepared to be installed to the installation place, correcting the
wall board by gavelock and making it close tightly;Grouting and filling starch;
5. Sticking fiber glass mesh;
6. Apply putty powder and level up;
7. Finished.
