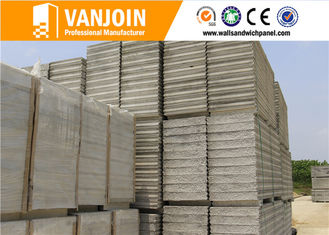

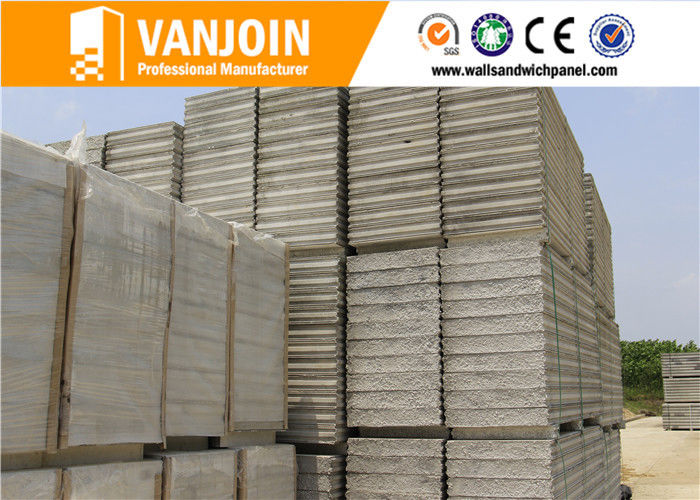

Light Weight Energy Saving Interior Eps Sandwich Wall Panel For House Building

Name

Size(L*W*T)

Weight(KG)

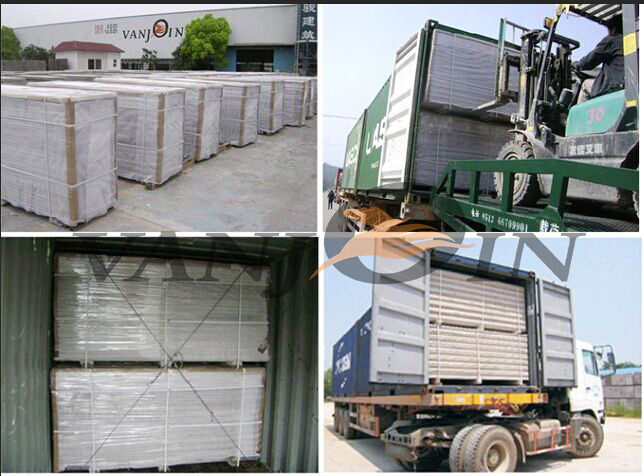

Packing(pcs/㎡ per 20")

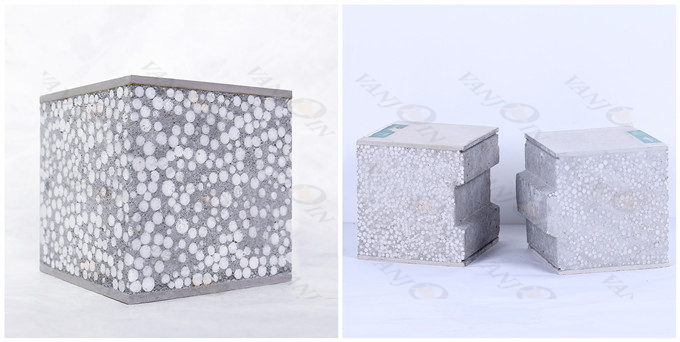

VJ light weight compound
sandwich panel

2270*610*60

45-48

315 pcs / 436 ㎡

2270*610*75

50-53

252 pcs / 349 ㎡

2270*610*90

55-58

207 pcs / 287 ㎡

2270*610*100

60-65

189 pcs / 262 ㎡

2270*610*120

65-75

153 pcs / 212 ㎡

2270*610*150

90-90

126 pcs / 175 ㎡

Interior/Exterior Sandwich Panel

Fast construction

75-80m2/day three workman

Sound insulation

46dB

Space saving

Save 4.26m2 per 100 m2 area

Anti-seismic

Class 7-8

Fireproof

4 hours, under 1000 degree centigrade

Eco-friendly

100% non-asbestos

Hanging force

Single point hanging force 50kg, Embed hanging force 150kg

Service Life

60-70years

1. Setting the line and carrying
the board in position

Eject double lines of board thickness up and down the axes
of installed wall board, and easily carry to the side of wall
according to the specification needed;

2. Sawing board

Using hand-hold electric saw to cut freely according to the
 wall specification.

3. Sizing

Sizing cement on tenon side of two boards, then  spread
polymer mortar on the tenon side casually;

4. Installation

Carrying the board prepared to be installed to the
installation place, correcting the wall board by
gavelock and making it close tightly, and let the
polymer mortar squeeze out into full and fixing
it with a chock temporarily;

5. Correcting, fixing

Using the guiding rule of two meters to check the
verticality and leveling correction. Then using 6mm
or 8mm reinforcing steel bar and ribs adding with
construction sealant to fix;

6. Grouting and filling starch

Filling the strickling the corrected wall board with
polymer mortar, filling the big gap with pea gravel
concrete;

7. Sticking fiberglass mesh (we can supply )

After the polymer (for filling the gaps) and Wall are
shaped, sticking fiberglass mesh on the whole wall
with anti-crack mortar.

8. Installing electrical wires and switches

Setting lines on the places needing to be set with
concealed wire and switch box, then cut a groove
by hand-hold electric saw, filling with polymer mortar
after installation

9. Installing doorcase

Preparing door and window holes on the installed wall,
anchoraging by splint or lines.

10. Facing coating and wall papers

Scraping putty directly without plastering on the installed
wall, then brushing coating and sticking wall paper

11. Facing ceramic tile, decorative sheet

Sticking ceramic tiles or other wood facing panels
casually without plastering on installed wall.

12. Electric apparatus installation

Install lights, furniture, air-conditioners casually on
installed room ,can be nailed or hanged
