Product Details:
Payment & Shipping Terms:
|
| Type: | EPS Sandwich Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Color: | Grey | Size: | 2270mm* 610mm * 60/75/90/100/120/150mm |
| Anti-earthquake: | 8-13 Grade | Use Life: | 70Years |
| Construction Time: | 3 Workers Can Install 75m2 A Day | Eco-friendly: | 100% No Asbestos, Asbestos Free |

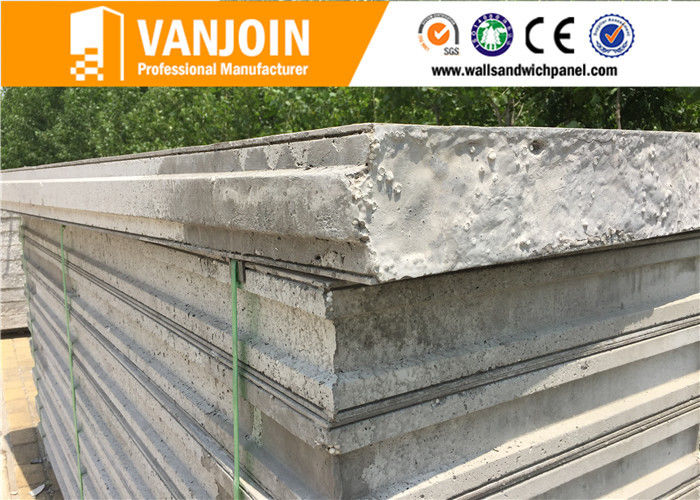

Lightweight Fire Rated Sip Sandwich Wall Panel For Structure House
2. Size&Weight:
|
NAME |
SPECIFICATION(MM) |
WEIGHT(kg/m2) |
Allowed Tolerance(mm) |
|
VJ light weight compound sandwich panel |
2270*610*60 |
45-48 |
Length±5 Width±2 Thickness±1 Diagonal±2 |
|
2270*610*75 |
50-53 |
||
|
2270*610*90 |
55-58 |
||
|
2270*610*100 |
60-65 |
||
|
2270*610*120 |
65-75 |
||
|
2270*610*150 |
80-90 |
||
|
2270*610*180 |
95-105 |
3. Usage:Interior and exterior partition on steel or concrete structure building, For new construction, additions or renovations.
4. Advantages:
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100%non-asbestos |
|
Easy to install, fast construction |
3 workers can finish a 70 m2 house just by 1 week |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
38-50 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
The panel can keep well about 4 hours under 1000 degree |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Weight capacity |
500KG/ square meter |
5. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board
Can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops

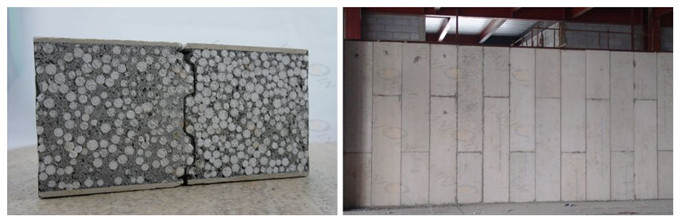

6. For Partition Wall:

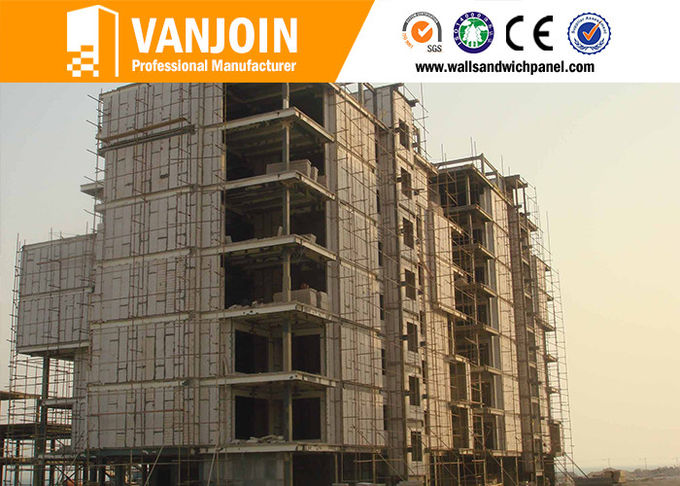

7. Exterior Wall Application:

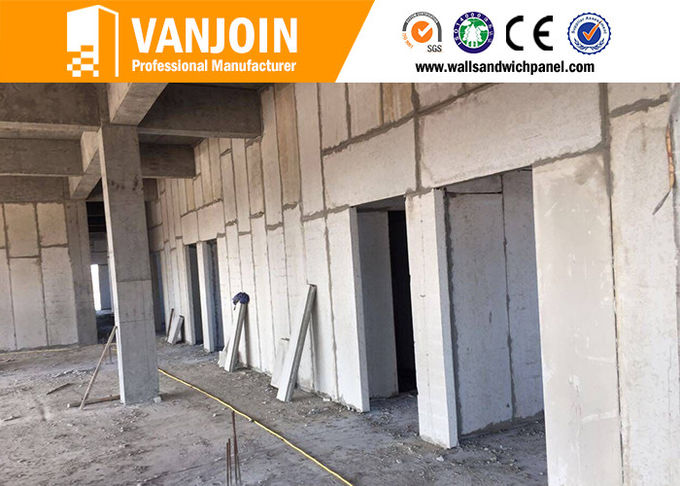

8. Interior Wall Application:

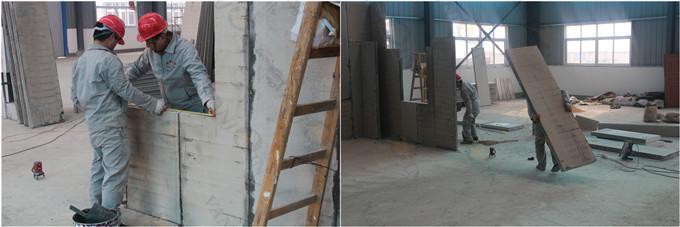

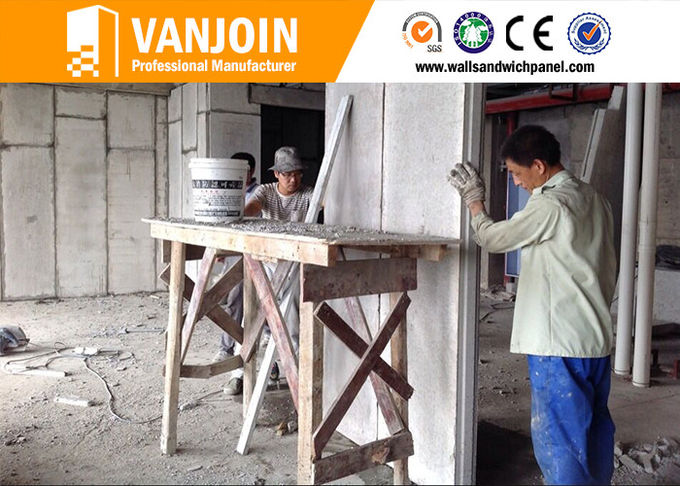

9. Installation:
1. Setting the line and carrying the board in position;
2. Sawing board basing on requirement;
3. Sizing cement on tenon side of two boards;
4. Carrying the board prepared to be installed to the installation place, correcting the
wall board by gavelock and making it close tightly;Grouting and filling starch;
5. Sticking fiber glass mesh;
6. Apply putty powder and level up;
7. Finished.

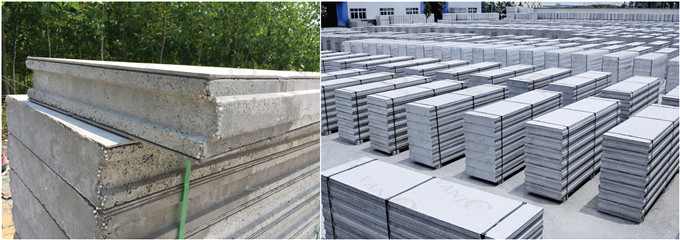

Factory Information
Production area is 40,000m2
Stacking area is 60,000m2
Production capacity is 2,000,000m2 per year
Export quantity is over 400 containers per month
FAQ
Q 1 ). How many years your company has been in this field?
A: More than 10 years of manufacturing EPS concrete sandwich wall panel,
now we are TOP 1 In middle of China, and among top 2 in china in this field .
Q2 ).Where is your main market of VANJOIN?
A: Main market Asia, South America, Africa,South East Asia is our largest market,Mid East is our second largest market.
Q3 ). Exporting details :
A: Loading & shipping 400 x 20 GP each month.
Q4 ). More information of VANJOIN factory?
A: land area 30,000 m2 machines, full-automatic production line Productivity: 2,000,000 m2 wall panel per year.
Q5 ). How could i get the samples?
A: We send you the free samples, catalogues, CD, but the Express charge is required,if you have the DHL, TNT, UPS, FedEx account, this is the best.
If not, you can transfer money to our Western Union, then we will send you.
