Product Details:
Payment & Shipping Terms:
|
| Features: | Fast Construction, Anti-earthquake, Light Weight, Save Space | Product Name: | Insulated Sandwich Wall Panels |
|---|---|---|---|
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Size: | 2270*610mm |
| Usage: | Room Partition | Soundproof Performance: | 38~46dB |
| Fire Resistant: | 4 Hours | Heat Insulation: | Excellent |

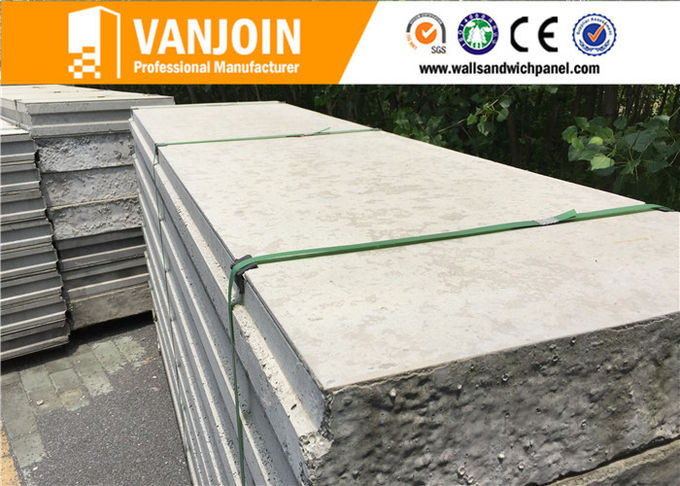

Lightweight Fireproof Insulated Sandwich Wall Panels For Room Partition
1. Advantages of Vanjoin Sandwich panel:
1. Most light weight, just sixth of the brick building
2. Most Area-saving. In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area, for the 100㎡ house, it will increase 4.26㎡.
3. Most waterproof and dampproof. Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very obvious. The experiment shows that without any waterproof facing, build one pool with our products, and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there isn't any condensation wate.
4. Most fire-proof. Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.
5. Most sound-insulation. 46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.
6. Most anti-seismic and inpact resistance. Earthquake resistant level: M8.0
7. Largest span and height thin webbed wall. The large span walls impact resistance ability will be 1.5 times more than common material. The simple construcing height is 16.8m, but need a stucture within every 6m in transverse direction and 5m in longitudinal direction.
2. Product Performance:
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100% non-asbestos |
|
Easy to install, fast construction |
3 workers can finish a 160 m2 house just by 1 day |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
42-46 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Weight capacity |
400KG / square meter |
3. Packaging & Shipping:
|
Specification (mm) |
Weight (kg/m2) |
Packing |
|
2270x610x60 |
45~48 |
315pcs, 436m2 |
|
2270x610x75 |
50~53 |
252pcs, 349m2 |
|
2270x610x90 |
55~58 |
207pcs, 287m2 |
|
2270x610x100 |
60~65 |
189pcs, 262m2 |
|
2270x610x120 |
65~75 |
153pcs, 212m2 |
|
2270x610x150 |
80~90 |
126pcs, 175m2 |

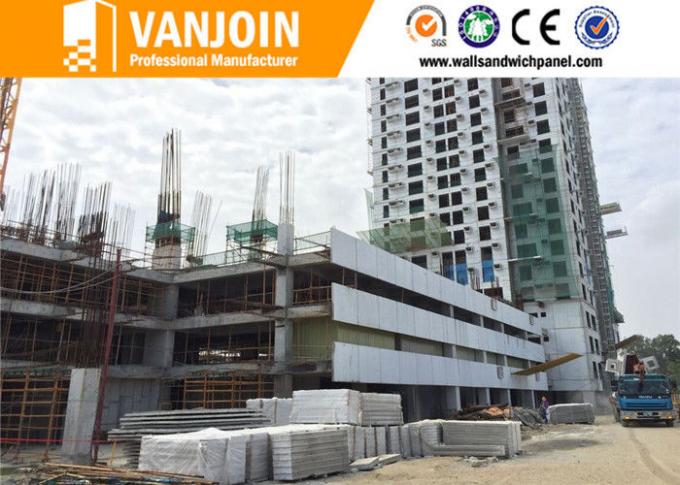

4. Application:
For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.
