Product Details:
Payment & Shipping Terms:
|
Size (L*W*T): | 2270mmx610mmx60mm(75,60,100,120,150) | Panel Material: | Nonmetal |
---|---|---|---|
Application: | Exterior Wall, Interior Wall, Roof And Floor | Sound Insulation: | 46dB |
Fireproof: | 240 Minutes – Class A | Live Load: | 600kg/m2 |
Anti-earthquake: | 8-13 Grade | Service Life: | 50-60 Years |
Durable EPS Precast Concrete Fireproof Insulation Board for Walls
1. Description of wall Panel
EPS Precast Concrete Sandwich wall panel is a kind of board material taking fiber reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, Sand as fillers and forming by one time compound .
Composition
Core materials: cement, EPS, and fly ash or sand core
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board
Size and Dimension: (L*W*T)
2270mm X 610mm X60mm (75, 90,100,120,150)
2. Specifications of wall panel
Name |
Size(L*W*T)mm |
Weight (kg/m2) |
Packing (pcs/m2 20’GP) |
Application |
EPS Cement Sandwich Wall Panel
|
2270x610x60 |
45-48 |
315 pcs /436 m2 |
Roof, interior wall |
2270x610x75 |
50-53 |
252pcs / 349 m2 |
Interior wall |
|
2270x610x90 |
55-58 |
207pcs / 287 m2 |
Interior/exterior wall |
|
2270x610x100 |
60-65 |
189pcs / 262 m2 |
Interior/exterior wall |
|
2270x610x120 |
65-75 |
153pcs / 212 m2 |
Exterior wall |
|
2270x610x150 |
80-90 |
126pcs / 175 m2 |
Exterior wall |
3. Advantages of wall Panel

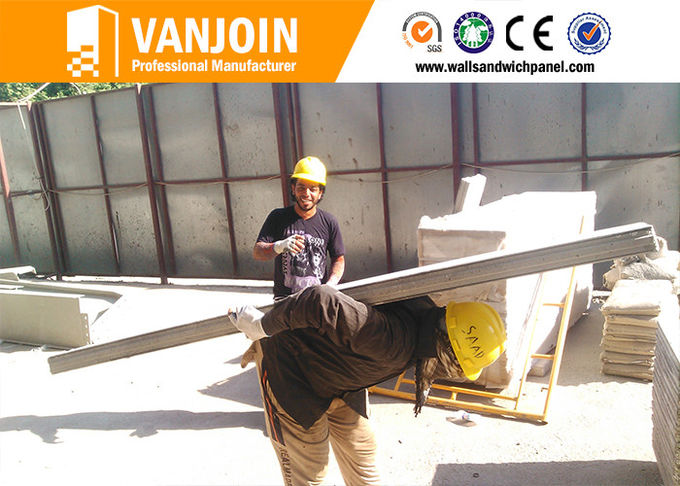

Light weight |
1 person can take up two pieces of Vanjoin panel |
Energy-saving, Eco-friendly |
100% non-asbestos |
Easy to install, fast construction |
3 workers can finish a 70 m2 house just by 1 week |
Strong and durable |
Long life 60-70 years |
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
Sound insulation |
42-46 DB |
Weatherproof; windproof |
70m/s; grade 13 |
Fireproof |
The panel can keep well about 4 hours under 1000 degree temperature |
Anti-impact, anti-earthquake |
Grade 8 |
Best hanging strength |
Single point hanging force is > 1200 N |
Weight capacity |
600KG / square meter |
4. Comparison wall Panel with other Building Material
Internal Wall |
Weight(kg/m2) |
Total Weight (kg/m2) |
||
Material |
Specification |
Material |
Plastering |
|
Sand Lime Brick |
180 |
324 |
80 |
404 |
120 |
216 |
80 |
296 |
|
90 |
162 |
80 |
242 |
|
Aerated Concrete Brick |
180 |
144 |
80 |
|
120 |
96 |
80 |
224 |
|
90 |
72 |
80 |
152 |
|
Hollow Brick |
180 |
180 |
80 |
262 |
120 |
120 |
80 |
200 |
|
90 |
90 |
80 |
170 |
|
VANJOIN Wall Panel |
90 |
55 |
0 |
55 |
75 |
51 |
0 |
51 |
|
60 |
45 |
0 |
45 |
|
External Wall |
Weight (kg/m2) |
Total Weight (kg/m2) |
||
Material |
Specification |
Material |
Plastering |
|
Sand Lime Brick |
240 |
438 |
80 |
518 |
180 |
324 |
80 |
296 |
|
120 |
216 |
80 |
242 |
|
Aerated concrete brick |
240 |
144 |
80 |
224 |
180 |
240 |
80 |
176 |
|
120 |
180 |
80 |
152 |
|
Hollow Brick |
240 |
240 |
80 |
260 |
180 |
180 |
80 |
200 |
|
120 |
120 |
80 |
170 |
|
VANJOIN wall panel |
150 |
85 |
40 |
125 |
120 |
70 |
40 |
110 |
|
100 |
63 |
40 |
105 |
5. Who are we?
We're a specialized manufacturer of sandwich wall panel & panel production line. Below points you could be interested:
6. One Picture:
