Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cement Sandwich Panel | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Raw Material: | Sand,cement,fly Ash,additive |
| Fireproof: | 240min (1000 Degree ) | Anchorage Load: | 50 Kgs |
| Thermal Conductivity: | 0.221W/mK | Anti-earthquake: | Class8 |
100mm Anti-earthquake Precast Concrete Wall Panel Lightweight Panels
Panel Specification:
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270*610*60 |
45-48 |
315 pcs / 436 ㎡ |
|
2270*610*75 |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,
Application of EPS Wall Panel:
1) Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.

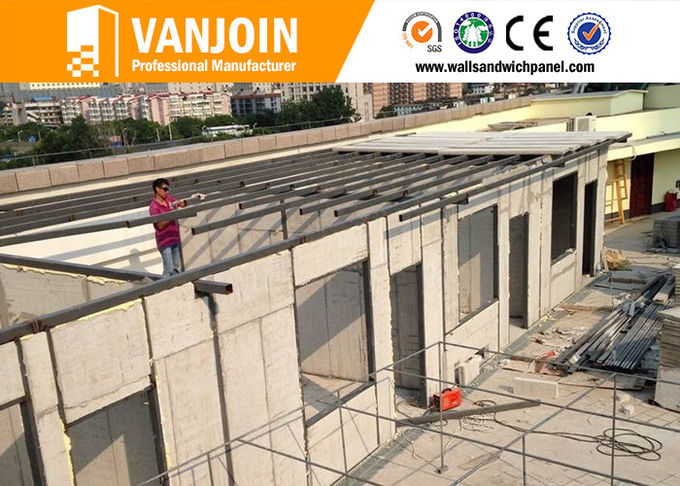

2) Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.
3) Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.

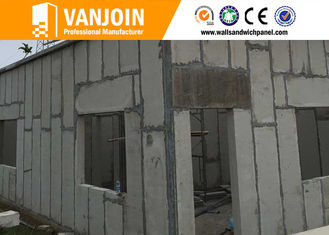

4) Interior & Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
Unique Performance Index of EPS Cement Wall Panel:
|
O. |
Item |
National Standards |
Testing Results |
||||
|
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
||
|
1 |
Anti-impact performance/times |
≥5 |
≥5 |
≥5 |
≥6 |
≥6 |
≥10 |
|
2 |
Anti-bending damage load/times |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥3 |
≥3 |
|
3 |
Anti-pressure strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥6 |
≥6 |
≥6 |
|
4 |
Surface density kg/m2 |
≤70 |
≤90 |
≤110 |
≤45 |
≤54 |
≤66 |
|
5 |
Single point hanging |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
|
6 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥3 |
≥3 |
≥4 |
|
7 |
Sound insulation capacity |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
|
8 |
Soften coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
|
9 |
Moisture rate a/% |
≤12 |
≤10 |
≤10 |
≤10 |
≤9 |
≤7 |
|
10 |
Heat transfer coefficient |
≤2.0 |
≤2.0 |
≤2.0 |
≤1.0 |
≤0.6 |
≤0.5 |
|
11 |
Drying shrinkage /mm/m |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.45 |
≤.0.5 |
≤0.5 |
|
12 |
Inner radiation index |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
|
13 |
Outer radiation index |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
|
14 |
Radioactivity Limit |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
Advantages of VANJOIN Panel
1. Fast construction (25m2/day/person)
2. Windproof (65m/s)
3. Sound insulation(46dB)
4. Anti-impact, Anti-seismic (class: 8)
5. Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
6. Light weight, Energy-saving
7. Eco-friendly green material
8. Save area, Easy installation
9. Heat insulation & preservation
10. Strong and durable, 60-70 years life span.
About US:
We are experienced in this field for 10 years;
We have a 40,000m2 factory, with 60000m2 sotcking area;
We are ranking Top 2 in China, and Top 1 in middle of China;
We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
Our production capacity is 2,000,000m2/year;
Our average exports is over 400 containers/month;
Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
Our Professional Serive:
1. Energy saving wall panel ,prefab house and roof system application professional advice.
2. Manage product and construction technology communication and related documents
3. International standard installation node diagram design.
4. Creative design.
5. Comprehensive technology solutions for the overall system.
6. Other service required by the clients.
How could I get the samples ?
Ans: We send you the free Precast EPS Concrete Sandwich Wall Panel, samples, brochures & installation cd etc, you just pay for the freight charges.

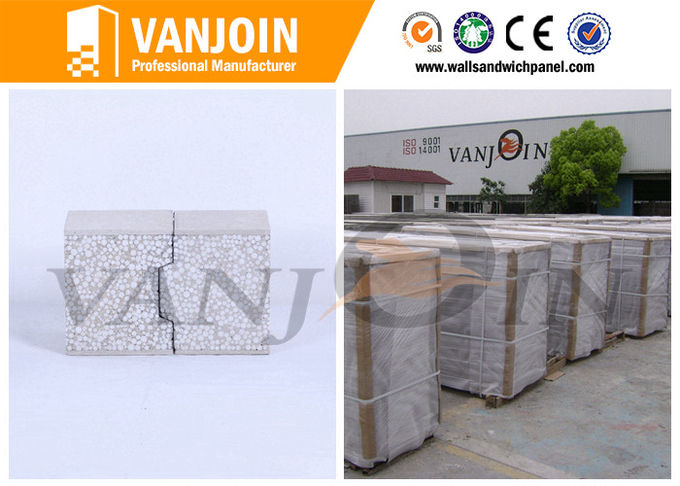

Packing
Packing Standard is Standard Exporting Packing
Packing Materials are EPE foam film,plastic thin film, edge protect,packing belt, good pallet
Total Packages is 18 pallets/20'GP.
