Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lightweight Eps Sandwich Panel Machine Line | Panels Application: | Mainly For Wall , Also For Floor & Roof |
|---|---|---|---|
| Annual Productivity: | From 100,000m2 To 1,000,000m2 | Machines Installation Service: | Engineers Guide Installation At Client Factory |
| Advantages: | Automatic & High Efficiency | Life Time: | More Than 20 Years |
| Warranty: | 1 Year | Technical Support: | Vanjoin Owned Patent Certificate And Update New Products To You. |

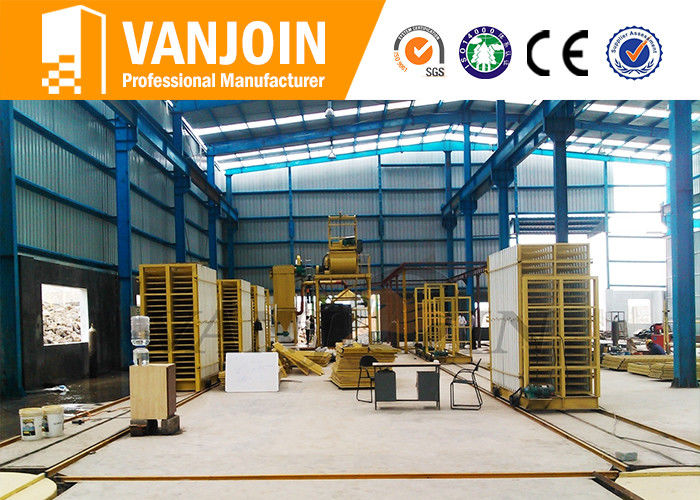

Lightweight Eps Sandwich Panel Machine Line
1. Why you need to buy Sandwich Panel Line Machinery ?
|
Item No |
Benefits |
Remarks |
|
1 |
Save Freight Charges |
No need to Import , can save you transportation cost |
|
2 |
Fast Delivery |
No need to wait for 1-2 months ,you can transport the panels to your client directly & quickly |
|
3 |
Easy Handling |
No need to overcome the complicated import procedure & lots of paperwork |
|
4 |
More Profit |
Size the Market Opportunities Timely |
2 . Vanjoin Sandwich Panel Line Machinery Productivity & Types
|
We Supply & Recommend Star |
|||
|
Annual Output/ Sqm |
Manual |
Semi-Automatic |
Full Automatic |
|
100,000 |
★ |
★★★★ |
★★★★★ |
|
200,000 |
★ |
★★★★ |
★★★★★ |
|
300,000 |
★ |
★★★★ |
★★★★★ |
|
400,000 |
★ |
★★★★ |
★★★★★ |
|
500,000 |
★ |
★★★★ |
★★★★★ |
|
600,000 |
Not Recommend |
★★★★ |
★★★★★ |
|
700,000 |
Not Recommend |
★★★★ |
★★★★★ |
|
800,000 |
Not Recommend |
★★★ |
★★★★★ |
|
900,000 |
Not Recommend |
★★★ |
★★★★★ |
|
1,000,000 |
Not Recommend |
★★★ |
★★★★★ |
3. Why You Choose Vanjoin Line?
(1) From Machine Aspect:
|
Types |
Advantages |
|
Boiler & Foaming System |
Quality Machine With High Efficiency |
|
Sand/Eps/Cement/Additives Storage/ Measuring/Conveying |
With Automatic Transfer & Precisely Measuring |
|
Mixing Machines |
Unique Design, with the 3 layers for Mixing & Pouring Temporary Storage Hooper for the raw materials runs quickly & higher productive |
|
Mould Car System |
Vertical Mould car System, Much Higher Productivity than Horizontal Mould Car Motors On Each Mould Car ,Can Easy Go Ahead & Back, Save Your Production Time |
Mould Car Description & Productivity as Below:
|
Item |
Main parameters
|
||||||
|
Overall Dimensions( Length × Width × Height )
|
3180mm×1380mm×3480mm |
||||||
|
Weight
|
2800KG |
||||||
|
Movement Power(KW)
|
2.2 |
||||||
|
Movement Speed(m/min)
|
≤60 |
||||||
|
Main Components
|
Main Part
|
Base(contain power device), front support, back support, pressing plate, rod
|
|||||
|
Accessories
|
Pressing Mould Plate, side mould
|
||||||
|
Production Data
|
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
|
Production Data
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
||
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
||
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
||
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
||
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
||
|
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
||
(2) Technical Aspect:
|
List Items |
Advantages |
|
Rich Experience |
With 10 Year’s Experience with Manufacturing the Machines |
|
Durable |
High Quality Machine With More than 20 Year’s Life Time |
|
Quality Assurance |
1 year warranty |
|
Producing Technology |
Get Patent Certificate for Producing the Wall Panels |
|
With Own Excellent Additives |
(3) Service Aspect:
|
No |
Items |
Specific Services We Can Provide |
|
1 |
Extra Free Service We Do For You |
Investment Cost Calculation |
|
2 |
Factory Area Design |
|
|
3 |

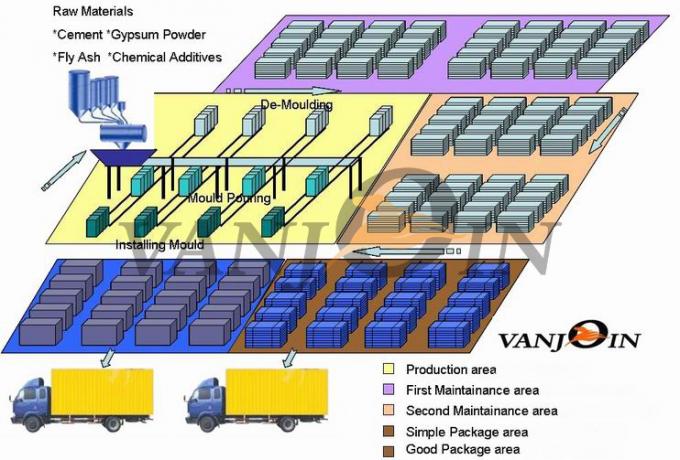

Production Line Layout Design |
|
|
4 |
Production Capacity Calculation |
|
|
5 |
Engineers Installation Machines |
Provide Engineers Guide Installation in Client Factory & Teach Workers To Produce the Quality Machines |
|
6 |
New Developed Products Updated |
Advise you the latest news when we lauched the new products |
